Mexx MIGBot — Collaborative MIG Welding Cell for Fast, Repeatable Production

A compact, mobile welding package combining a collaborative robot, robotic MIG welder, and a purpose-built welding table—designed to get you welding in minutes, improve consistency, and lift throughput with minimal programming overhead.

Contact Mexx
Request a budget estimate
  • Weld in minutes: quick setup with simple teaching workflow
  • Consistent high-quality: repeatable motion and parameters reduce variability
  • Increase productivity: keeps welding time high and rework low

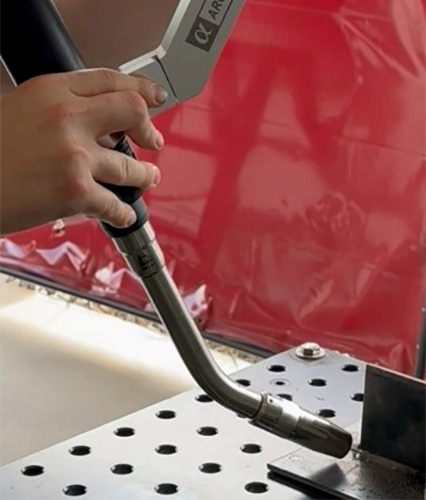

  • Drag-and-click teaching: quickly define start/end points for welds
  • Laser vision seam tracking (option)

What the MIGBot does

The MIGBot automates common MIG welds on parts and small assemblies using a collaborative robot on a dedicated welding bench. It’s suited to repeat jobs where you want reliable weld paths, stable parameters, and faster cycle-to-cycle output—without turning your workshop into a robotics project.

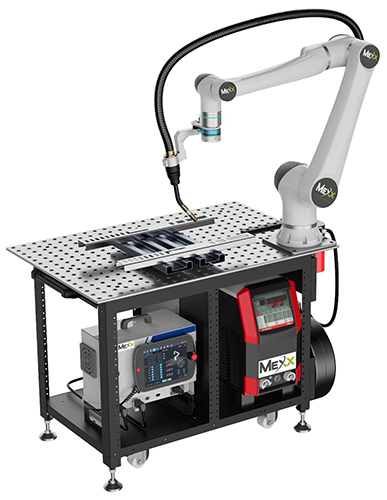

  • Pro series collaborative robot
  • Robotic welding torch + wheeled welding table
  • 500A robotic MIG welding machine

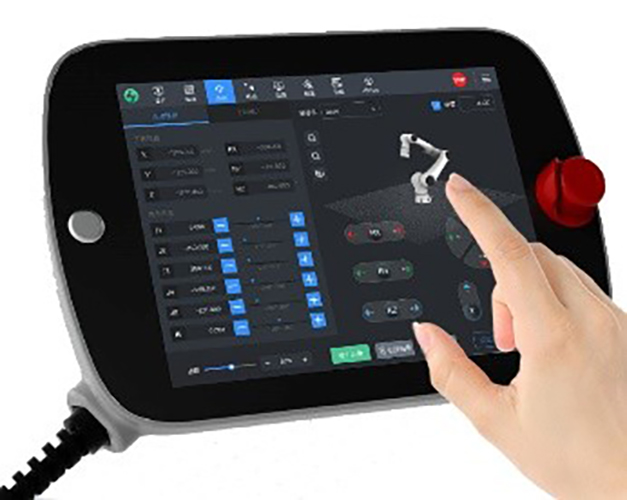

  • Intuitive teach pendant for setup and operation
  • Welding software + updates included
  • Designed for production repeatability
  • Drag-and-click to set start and end points
  • Set parameters
  • Confirm end point
  • Set gas + current timing
  • Begin welding
  • Cell portability on wheels

Key features

  • Collaborative robot cell format suited to tight workshop footprints MIGBot Welding Specifications V1

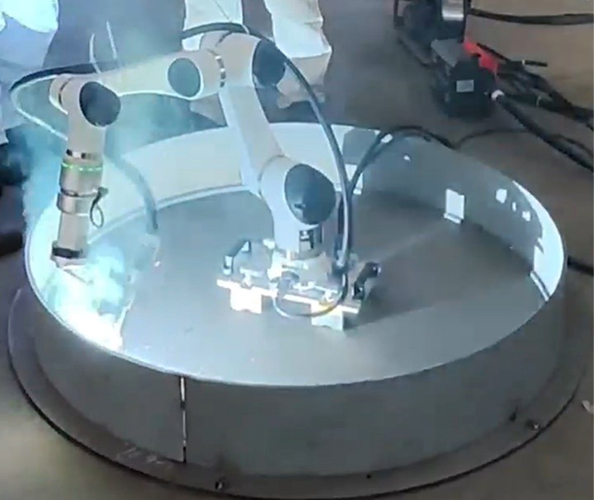

  • Multiple weld orientations: supports round welding, vertical welding, and multi-layer welding MIGBot Welding Specifications V1
  • Magnetic base welding option (when the job suits it) MIGBot Welding Specifications V1
  • Mobile deployment: wheeled table makes it practical to position where the work is

Model options (specs) E15

  • Reach / working radius: 1,300 mm
  • Payload: 15 kg
  • Axes: 6
  • Accuracy: 0.05 mm
  • Robot weight: 60 kg
  • Material: Aluminum
  • Power: AC220V/240V, 50/60Hz

Model options (specs) E10

  • Reach / working radius: 1,000 mm
  • Payload: 10 kg
  • Axes: 6
  • Accuracy: 0.03 mm
  • Robot weight: 43 kg
  • Material: Aluminum
  • Power: AC220V/240V, 50/60Hz

Applications

  • Ideal for repeatable fabrication welding in:
  • General fabrication and repair
  • Light-to-medium production welding
  • Batch work where consistency and speed matter
