Custom machine · Construction materials

Automated concrete core testing lab

A robotic lab Mexx engineered for Hanson (Heidelberg Materials). It prepares, cures, tests and tracks concrete core samples, with every core traceable from receipt to its final strength result.

Project snapshot

The job at a glance

Client

Heidelberg Materials (Hanson)

Industry

Construction materials testing

Product

Concrete core samples

Mexx scope

Robotics, automation and traceability

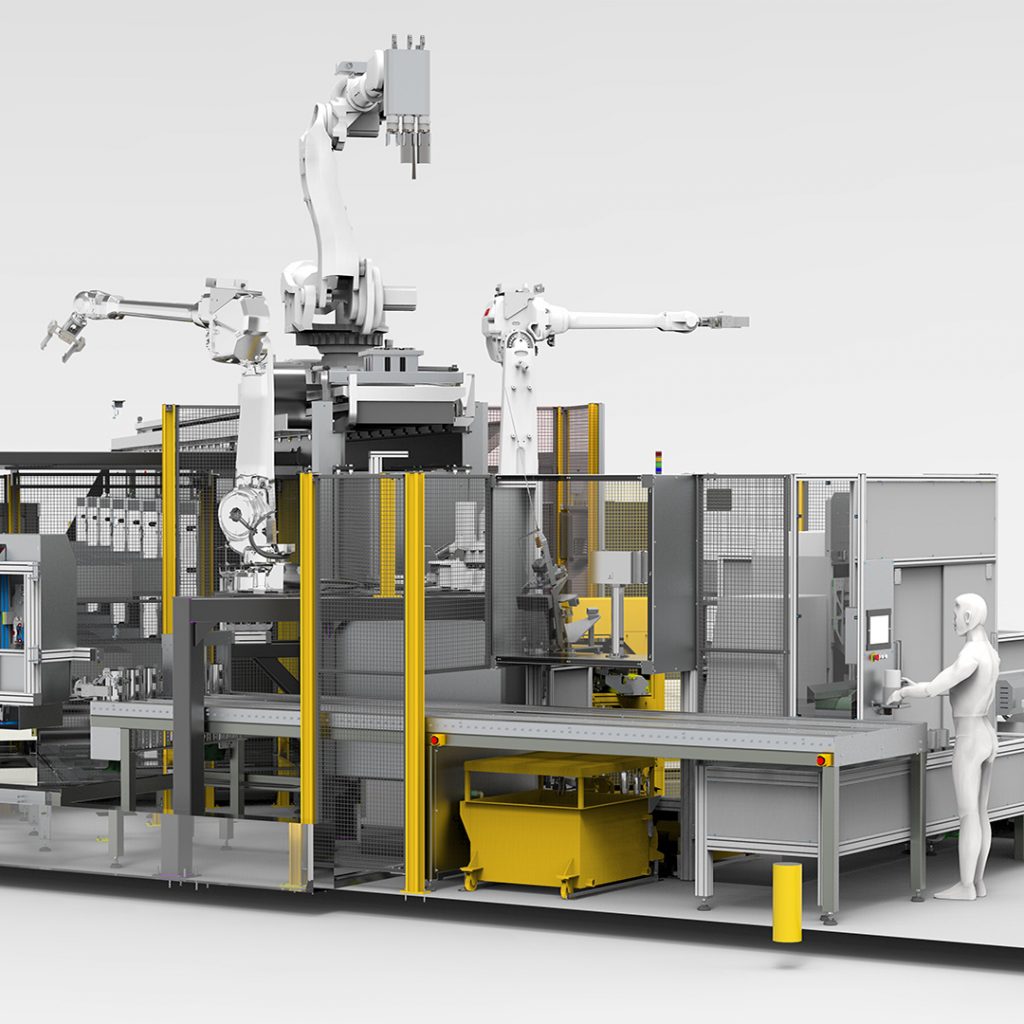

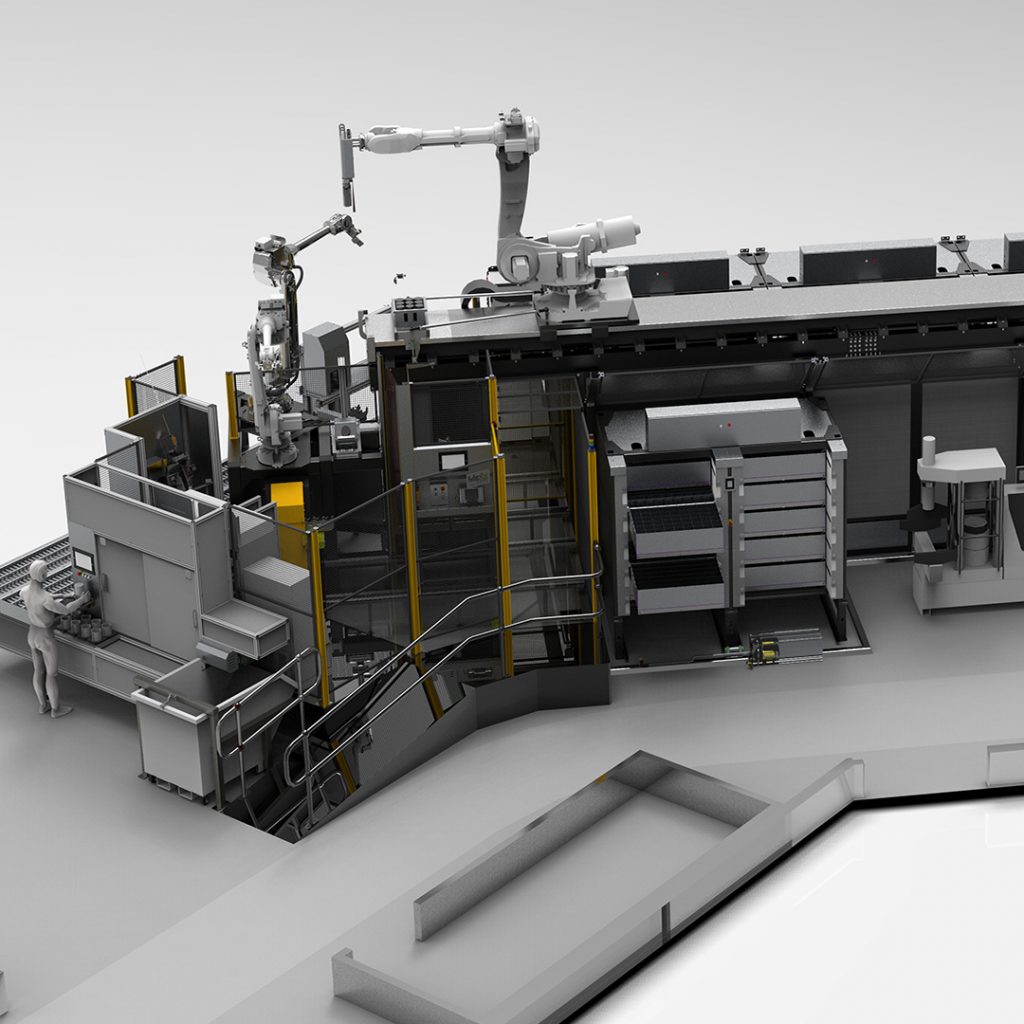

Mexx automated concrete core testing lab

The challenge

Every core prepared, tested and recorded the same way

Concrete labs handle large volumes of core samples. Each one has to be prepared, cured, tested and recorded without ever losing track of which core is which.

Done by hand, that means repetitive handling, inconsistent preparation, the risk of sample mix-ups and records spread across different places. The aim was to automate the whole workflow, from core receipt to final strength test.

What we built

One lab, seven stages

Each core gets a unique ID that follows it through every step, so its preparation, curing time and test results are all recorded against it.

01

Collation and ID

Incoming cores are collated and identified.

02

Robotic handling

Robots transfer cores between stations.

03

Labelling

Each core is labelled and barcode-tracked.

04

Grinding

Core ends are ground and prepared for testing.

05

Curing

Cores are stored in pH-balanced water tanks.

06

Strength testing

Compressive strength is tested automatically.

07

Records

Results are logged to a database against each core.

The result

Every core traceable, from receipt to result

One controlled workflow means less manual handling, consistent preparation and testing, and a digital record for every core sample.

See it running

The lab in operation
