Bottle handling

Bottle Turner and Inspection

Six-camera vision inspection and a conveyor-mounted bottle turner in one compact package. It finds defective HDPE bottles, rejects them, and turns the good ones to the orientation your line needs.

Why it works

Better bottles into the next machine

Catches defects early

Checks neck shape, cut quality, resin build-up and black specks before bottles go further.

Turns bottles on the move

Rotates bottles by the neck on the conveyor, without stopping the flow.

Adjustable

Rotation angle and direction are set through motor speed.

Fits your line

Compact, floor-mounted and connected to your PLC and reject logic.

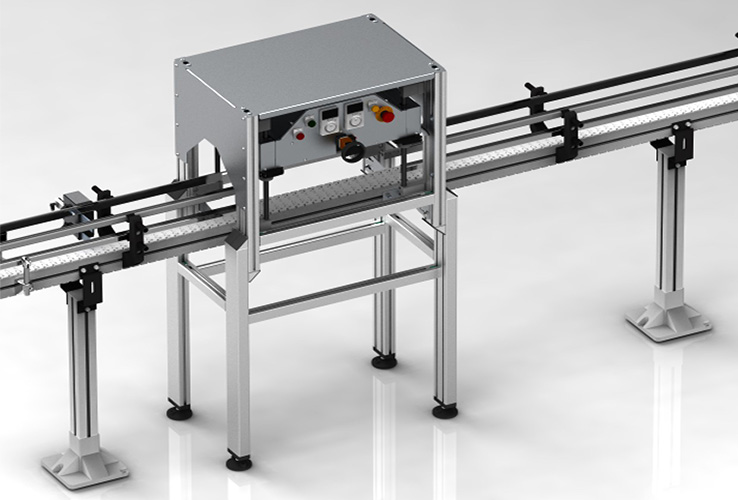

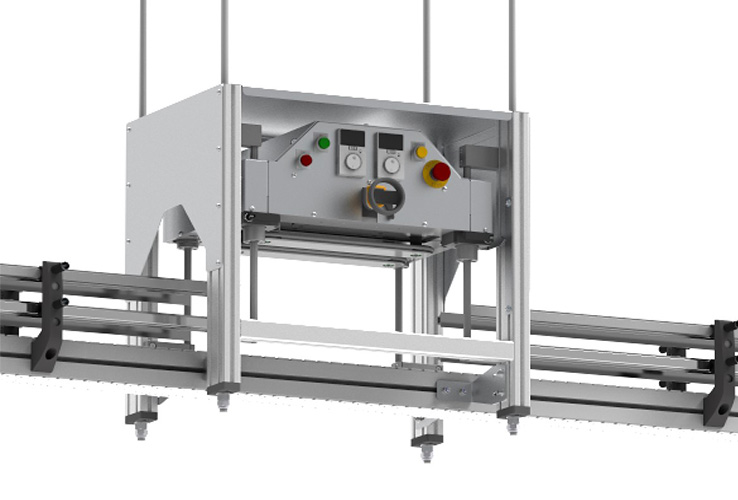

Mexx bottle turner and vision inspection station

What it does

Inspect, reject, orient

Bottles pass through a vision station that checks them from every side. Faulty bottles are rejected, and good bottles move into the turner, which rotates them into the right position for labelling, inspection or handling downstream.

  • Omron FH vision platform with six cameras, expandable to eight
  • Two neck cameras on a height-adjustable mount
  • Four cameras around the body for surface defects
  • Dedicated machine-vision lighting
  • Reject function, operator controls and a 20-inch display
  • Floor-mounted frame for a stable inspection platform

Specifications

Bottle turner at a glance

300 mm

Turning length

Up to 174 mm

Bottle width

100–300 mm

Bottle height

6 to 8

Inspection cameras

Details

What it checks and how it turns

What it checks

  • Neck ovality and neck height
  • Defects in the bottle cut
  • Resin build-up
  • Small black specks, on several sides
  • General bottle defects

How it turns

  • Two independently driven round polycord belts grip the neck
  • Rotation angle and direction set by motor speed
  • Conveyor-mounted, so bottles keep moving

Works with

  • Mexx bottle bagger and debagger systems
  • Conveyors and accumulation
  • Your PLC and reject logic

Service & support

Supported by the people who built it

Every Mexx machine is designed, built and commissioned by our own engineers, who stay on to support it. Service contracts include scheduled maintenance, spare parts, remote login and 24/7 on-call support, for machines across Australia and New Zealand.

Machines designed and built for

Wagners Heidelberg Materials (Hanson) PACT GROUP Synlait Milk Ashton Manufacturing Triple Eight Race Engineering APG – Australian Professional Galvanizing Withcott Seedlings Orica Fonterra Lion Visy VIP Packaging Brickwood

Next step

Talk to us about bottle inspection

Tell us your bottle sizes, line speed and the defects you need to catch. An engineer will get back to you within one business day.
